Portable AC Window Seal Kits
A portable ac window seal kit helps stop cooled air from escaping and keeps hot outdoor air from cycling back into the room, maximizing your air conditioner's efficiency. We offer a comprehensive range of custom and universal sealing solutions to suit different regional requirements, window types, and OEM specifications.
Get free expert advice on your cooling solutions
Industrial-Grade Materials and Manufacturing Specifications
Advanced Fabric Technology: 210T and 210D Oxford Polyester
We build our portable AC window seal kits around high-density Oxford polyester, chosen specifically for industrial and long-term use rather than consumer-grade textiles. A premium PU (polyurethane) coating provides a continuous barrier against liquid water under pressure.
- 210D Oxford Polyester: Placed in zones experiencing mechanical load and hose movement. This ~72–110 gsm basket-weave structure is highly abrasion-resistant, preventing tearing at stress points like hose cut-outs and zipper paths.
- 210T Oxford Polyester: Used in perimeter and sealing surfaces. With 210 threads per square inch, this tight weave lowers porosity and maximizes air and water blockage.
Heavy-Duty Zippers and Hardware
Our industrial-grade zippers are engineered around three core principles:
- Zipper tapes use high-tensile synthetic fibers matching the strength of Oxford polyester to prevent seam creep.
- Teeth and sliders are treated for moisture and temperature cycling to avoid seizing in damp environments.
- Components are built to withstand thousands of open/close cycles without jamming.
High-Tack Velcro Adhesion Systems
To prevent mounting failures common in DIY kits, we utilize a widened, high-strength hook-and-loop system with an industrial pressure-sensitive adhesive (PSA) backing.
- Strong Grip: Widened tape increases contact area, boosting both tensile and shear capacity against blower pressure.
- Broad Compatibility: Adheres strongly to high surface energy materials like aluminum, finished timber, and rigid PVC (UPVC).
- Clean Removability: Engineered for rental properties, peeling the adhesive slowly from a corner leaves minimal residue.
Market-Specific Window Fits
Choose your kit based on the window opening, not the AC unit.

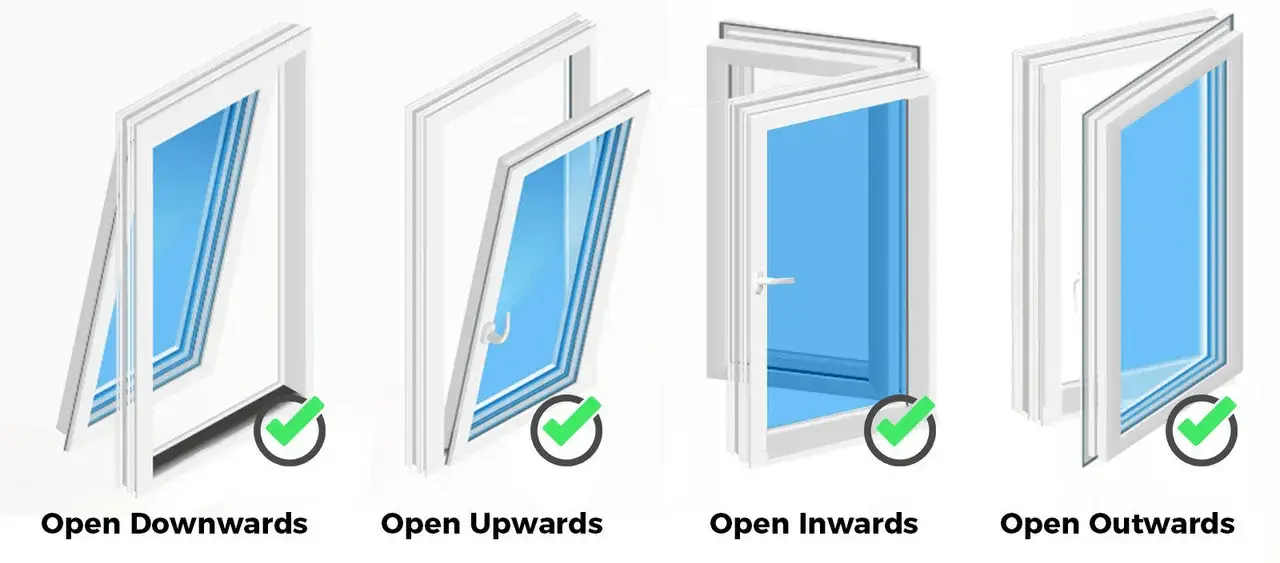

- European Markets: Homes typically require flexible fabric or custom acrylic solutions for tilt-and-turn and casement windows. Fabric zipper seals easily wrap around irregular frames and opening sashes.
- North American Markets: Sliding and double-hung frames work best with rigid, structured kits. Hard panels provide a predictable seal and easily size to standard window tracks.
- Skylights and Roof Windows: Angled frames require oversized zipper seals or cut-to-size rigid panels with precision hose openings.
Comparing the Main Kit Types
|
Kit Type |
Best Use Case |
Main Advantage |
Main Limitation |
|
Soft Fabric Zipper Seals |
Irregular frames, rentals, tilt-and-turn, casement, skylights |
Flexible, easy to install, renter-friendly |
Less rigid in high wind or heavy rain |
|
Hard Plastic Panel Kits |
Standard sliding and double-hung windows |
Stable, structured seal with strong frame support |
Less forgiving on non-standard opening shapes |
|
Foam-Based / DIY Solutions |
Unique gaps and one-off setups |
Highly adaptable and easy to cut |
Heavily dependent on tape and installation quality |
Hose Configuration and Sizing
Matching Hoses and Diameters
A single-hose setup needs one clean exhaust opening, while a dual-hose setup requires two openings or a larger reinforced cut-out. Fabric zipper designs easily adapt to close tightly around one or two hoses. Customers must confirm their unit’s outlet diameter (e.g., 5.9-inch) prior to purchase.
Standard vs. Custom Window Seal Sizes
Universal fabric kits typically cover perimeters up to 400 cm. We offer ready-to-ship options in 300 cm, 400 cm, and 560 cm formats. For unusual dimensions or oversized openings, custom acrylic or polycarbonate panels offer the highest precision.
Supply Chain Solutions and Private Labeling
We partner with global distributors who demand engineered, repeatable performance. Our core competency is OEM/ODM flexibility at scale, giving you one direct source for both universal fabric systems and custom rigid programs.
- Private Labeling: Custom silk-screen logos applied directly to cloth. Zippers, pulls, and tabs can be color-matched. Rigid SKUs can feature molded or printed logos and bespoke instruction manuals.
- Production & Lead Times: Our supply chain is aligned for summer peaks. We lock in raw materials early and separate sample approvals from mass production to guarantee predictable ex-factory dates.
- Amazon FBA Ready: We engineer packaging to lower your DIM weight. Units ship in compact color boxes or compliant polybags with suffocation warnings, moving directly from container to Amazon bins without re-packing.
- Quality & Compliance: We work strictly within RoHS/REACH and RSL/MRSL frameworks for EU-bound programs. In-process QA checks monitor stitching, seam strength, and zipper alignment.
Step-by-Step Installation Guide
Most portable AC window seal kits follow a simple, no-drill installation flow.
- Prepare the Window and Frame: Clean all contact surfaces on the fixed frame and moving sash. Remove dust and grease, then wipe completely dry.
- Apply Adhesive Tape: Measure the perimeter and apply the self-adhesive tape or Velcro around the frame and sash. Avoid hinges so the window remains operational.
- Attach the Seal Fabric: Fix the “wide” side of the cloth to the frame first. Position the sash, then attach the “narrow” side. Keep the fabric taut.
- Secure the Hose Opening: Insert the exhaust hose through the zipper slit or precut port and close it tightly.
- Test the Setup: Turn on the AC unit, check the perimeter for small gaps, and reinforce any weak spots with extra tape or foam until the airlock holds steady.
Frequently Asked Questions
For custom lengths of fabric seals using neutral packaging, the MOQ is low and tied to the sewing run. If you require custom printed retail cartons or made-to-measure rigid seals, the MOQ increases to meet the printer's minimum run requirements.
Yes. For dual-hose units, we can produce OEM sewing patterns with two separate zipper runs sized perfectly for specific hose diameters. We match the center-to-center spacing to your unit to keep the seal flat and tensioned.
Yes, we would quote DDP for bulk orders if you requested. We handle international transport, import clearance, and duties, delivering directly to your warehouse for a single, predictable landed cost.
Yes. Our systems use removable adhesive backing designed for glass, PVC, and painted metal. To prevent damage, clean the frame before application and peel the tape back slowly at a low angle during removal.
Absolutely. Properly installed kits utilize water-repellent cloth and tight zippers to block rain. The tight seal also acts as a highly effective barrier against mosquitoes and other pests.
